Weha Hippo Heavy Duty Multi Bundle Rack. 190,080 lb Weight Capacity. 23,760 lb Capacity per set of Posts.
Weha Hippo Bundle Rack offers the strongest and largest weight capacity granite and stone bundle rack produced.
The Weha Hippo HD Bundle Rack set comes with 2 10 foot bases and 16 Posts with white rubber caps
The Weha Hippo Heavy Duty Bundle Rack is rated to support the heaviest bundles of stone out there.
Weha wanted to combine weight capacity with high frequency of moving bundles that generally fatigue less weight capacity granite bundle racks. The Weha Hippo HD Bundle Rack will do both of these for many years to come.
Why the Weha Hippo Bundle Slab Rack the strongest Bundle Rack on the Market
The load capacity: Each post is rated for 11,880lbs, the set of posts for 23,760 lbs. The Hippo comes with 16 posts, giving a total slab bundle rack capacity of 190,080 pounds.
Each set of posts will hold:30 2cm slabs and 20 3cm slabs.Fully hot dipped galvanization never allows the metal to rust and fatigue.
How can the Hippo Bundle Slab Rack hold so much weight?
The reason for this is thespecial base design and the thicker metal of the base and posts.
The Weha Hippo Bundle Slab Rack is made using 50% thicker steel (6mm) compared to standard slab bundle racks that use only 4mm.
The Hippo posts are also larger in diameter. 2.5" x 2.5" (63mm x 63mm) x 6mm thick posts. These posts are made using premium grade European single processed steel. This allows substantial increase in weight capacity. Each Post weighs 28 lbs each.

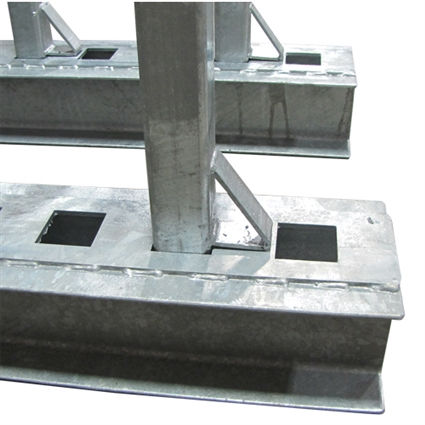

The Hippo Bundle Slab Rack base is 7 3/4" wide x 6" high double 6mm C channel with 6mm double plates. Each Base weighs 268 lbs each. The base is also made using premium grade European single processed steel.
The Weha Hippo HD Slab Bundle Rack has 23 2.5" x 2.5" square receivers. The receivers are spaced 5" on center apart.
Each post comes with the standard Weha Signature Safety Angle Bracket. This angle bracket faces the stone and offers a fail proof way to set the proper angle for the stone to ensure the safest and least amount of weight transfer to the posts.
The Weha Hippo Slab Bundle Rack is ideal for slab importers, slab distributors, and high production shops that are moving a lot of slabs in and out of their bundle racks.
The Hippo Slab Bundle Rack is perfect for storing Granite, Marble, Engineered Stone, Quartz, Quartzite, Dekton, Lapitec, and all other slab materials.
Weha Hippo HD Bundle Slab Rack Specifications:
Comes with 2 - 10' rails and 16 - 60" square poles.
Load Capacity: Each Post: 11,880 lbs. Set of Posts: 23,760 lbs. Full Rack with 8 Sets: 190,080 lbs
Post: 60" x 2.5" x 2.5" (63mm x 63mm) 28 lbs each
Base: 10' x 7 3/4"" x 6". Post receivers in Base: 23. Receivers spaced 5" in center.
Each Post comes with White rubber caps
Made of galvanized steel
